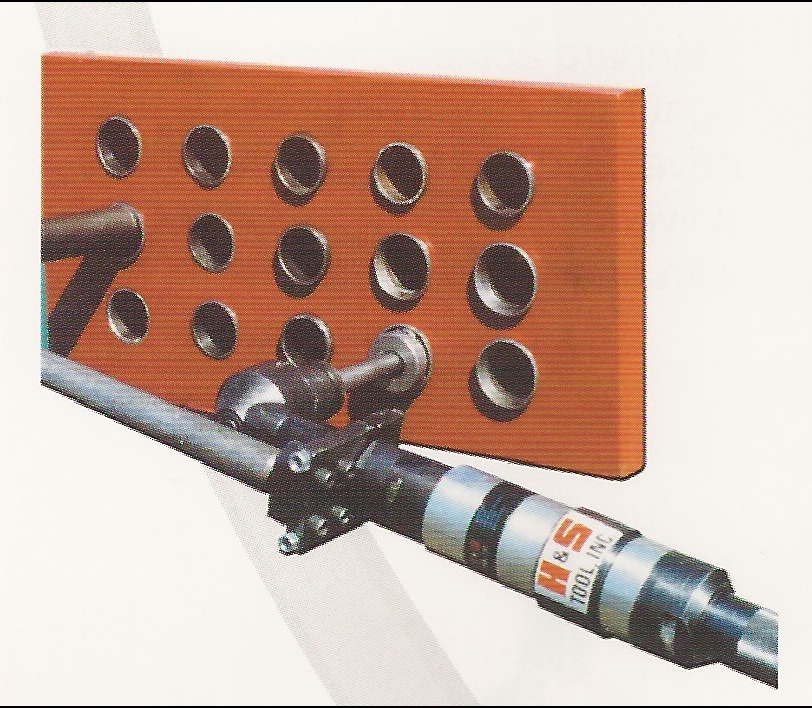

H&S offers compact, powerful and reliable rolling equipment, making us your single source for rental or purchase of tube milling, cutting and rolling equipment.
The reliable pneumatic powered rolling motors range from small 1,000 rpm models, for condenser tubes, up to large units that produce 600 ft.lbs. (821.1 Nm) of torque, for high pressure boiler tubes. All models feature variable torque with sensing cam for accurate automatic expanding.
Rolling motors are shipped with handle, adapter and air hose with a dual swivel connection and filter.
© 2009 • R.L. Clifford and Associates
| Model | Unit of Measure |
Actual Size | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| NB 4 | Std - in Metric - mm |
1.900 - 4.5 48.3 - 114.0 |
9.25 235 |
4.75 121 |
3 76 |
2.25 57 |
4.5 114 |
| NB 6 | Std- in Metric - mm |
2.375 - 6.625 60.3 - 168.3 |
11.375 289 |
6.875 175 |
3 76 |
2.25 57 |
4.5 114 |
| NB 8 | Std - in Metric - mm |
3.5 - 8.625 88.9 - 219.1 |
13.375 338 |
8.875 225 |
3 76 |
2.25 57 |
4.5 114 |
| NB 10 | Std - in Metric - mm |
4.5 - 10.75 114.3 - 273.1 |
15.75 400 |
11.25 286 |
3 76 |
2.25 57 |
4.5 114 |
| NB 12 | Std - in Metric - mm |
6.625 - 12.75 168.3 - 323.9 |
17.75 451 |
13.25 337 |
3 76 |
2.25 57 |
4.5 114 |
| NB 14 | Std - in Metric - mm |
8.625 - 14 219.1 - 355.6 |
19.75 502 |
14.5 368.3 |
3 76 |
2.25 57 |
4.5 114 |
| NB 16 | Std - in Metric - mm |
8.625 - 16 219.1 - 406.4 |
21 533 |
16.5 419 |
3 76 |
2.25 57 |
4.5 114 |
| NB 18 | Std - in Metric - mm |
12.75 - 18 323.9 - 457.2 |
23 584 |
18.5 470 |
3 76 |
2.25 57 |
4.5 114 |
| NB 20 | Std - in Metric - mm |
14 - 20 355.6 - 508.0 |
25 635 |
20.5 521 |
3 76 |
2.25 57 |
4.5 114 |
| NB 24 | Std - in Metric - mm |
18 - 24 457.2 - 609.6 |
29 737 |
24.5 622 |
3 76 |
2.25 57 |
4.5 114 |
| NB 26 | Std - in Metric - mm |
20 - 26 508.0 - 660.4 |
31 787 |
26.5 673 |
3 76 |
2.25 57 |
4.5 114 |
| NB 28 | Std - in Metric - mm |
22 - 28 558.8 - 711.2 |
33 838 |
28.5 724 |
3 76 |
2.25 57 |
4.5 114 |
| NB 30 | Std - in Metric - mm |
24 - 30 609.6 - 762.0 |
35 889 |
30.5 775 |
3 76 |
2.25 57 |
4.5 114 |
| NB 36 | Std - in Metric - mm |
30 - 36 762.0 - 914.4 |
41 1041 |
36.5 927 |
3 76 |
2.25 57 |
4.5 114 |
| NB 39 | Std - in Metric - mm |
33 - 39 838.2 - 990.6 |
44 1118 |
39.5 1003 |
3 76 |
2.25 57 |
4.5 114 |
| NB 43 | Std - in Metric - mm |
37 - 43 939.8 - 1092.2 |
48 1219 |
43.5 1105 |
3 76 |
2.25 57 |
4.5 114 |
| Model | Unit of Measure |
Actual Size | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| MC 1 | Std - in Metric - mm |
.840- 1.900 21.3 - 48.3 |
5.437 138.1 |
1.625 41.3 |
3.25 82.6 |
1.75 44.5 |
4.312 109.5 |
| MC 2 | Std - in Metric - mm |
.840 - 2.375 21.3 - 60.3 |
6.437 163.5 |
2.625 66.7 |
3.25 82.6 |
1.75 44.5 |
4.312 109.5 |
| Model | Unit of Measure |
Actual Size | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| HD 28 | Std - in Metric - mm |
16 - 28 406.4 - 711.2 |
38.125 968.4 |
29 736.6 |
5 127 |
4.562 115.9 |
6.75 171.5 |
| HD 30 | Std - in Metric - mm |
18 - 30 457.2 - 762.0 |
40.125 1019.2 |
31 787.4 |
5 127 |
4.562 115.9 |
6.75 171.5 |
| HD 32 | Std - in Metric - mm |
20 - 32 508.0 - 812.8 |
42.125 1070 |
33 838.2 |
5 127 |
4.562 115.9 |
6.75 171.5 |
| HD 36 | Std - in Metric - mm |
24 - 36 609.6 - 914.4 |
46.125 1171.5 |
37 939.8 |
5 127 |
4.562 115.9 |
6.75 171.5 |
| HD 43 | Std - in Metric - mm |
31 - 43 787.4 - 1092.2 |
53.125 1349.4 |
44 1117.6 |
5 127 |
4.562 115.9 |
6.75 171.5 |
| HD 50 | Std - in Metric - mm |
38 - 50 965.2 - 1270.0 |
60.125 1527.2 |
51 1295.4 |
5 127 |
4.562 115.9 |
6.75 171.5 |
| HD 60 | Std - in Metric - mm |
48 - 60 1219.2 - 1524 |
70.325 1786.3 |
61 1549.4 |
5 127 |
4.562 115.9 |
6.75 171.5 |
| HD 80 | Std - in Metric - mm |
62 - 80 1574.8 - 2032.0 |
90.325 2294.3 |
81 2057.4 |
5 127 |
4.562 115.9 |
6.75 171.5 |
| HD 110 | Std - in Metric - mm |
82 - 110 2082.8 - 2794.0 |
120.325 3056.3 |
111 2819.4 |
5 127 |
4.562 115.9 |
6.75 171.5 |
